阿里云ECS服务器部署记录

基础配置

修改主机名

1. 修改主机名

   vi /etc/hostname

2. 修改主机名后重启服务器，查看主机名

   hostname

安装Python3.11

1. 下载python

   wget https://www.python.org/ftp/python/3.11.6/Python-3.11.6.tgz

2. 安装依赖包

   yum install -y gcc patch libffi-devel python-devel zlib-devel bzip2-devel openssl-devel ncurses-devel sqlite-devel readline-devel tk-devel gdbm-devel db4-devel libpcap-devel xz-devel

3. 解压编译安装

   tar -zxf Python-3.11.6.tgz
   cd Python-3.11.6
   sudo ./configure --with-ssl --prefix=/usr/local/python3/
   sudo ./configure --enable-optimizations
   sudo make && make install

4. 添加环境变量

   vim /etc/profile

   PATH=/usr/local/python3/bin:$PATH

   source /etc/profile

5. 迁移目录，创建软连接

   mv /usr/bin/python /usr/bin/python.bak
   ln -s /usr/local/python3/bin/python3 /usr/bin/python
   ln -s /usr/local/python3/bin/pip3 /usr/bin/pip

6. 验证Python

   python -V
   Python 3.11.6

7. 修复yum

   vim /usr/bin/yum

   ​ 将第一行 “#!/usr/bin/python” 改为 “#!/usr/bin/python2.7”

   vim /usr/libexec/urlgrabber-ext-down

   ​ 将第一行 “#!/usr/bin/python” 改为 “#!/usr/bin/python2.7”

安装Java17

1. 下载Java

   wget https://download.oracle.com/java/17/archive/jdk-17.0.9_linux-x64_bin.tar.gz

2. 解压

   tar -zxf jdk-17.0.9_linux-x64_bin.tar.gz

3. 移动目录

   mv jdk-17.0.9 jdk17
   mv jdk17 /usr/local/jdk17

4. 添加环境变量

   vim /etc/profile

   export JAVA_HOME=/usr/local/jdk17
   export CLASSPATH=$:CLASSPATH:$JAVA_HOME/lib/
   export PATH=$PATH:$JAVA_HOME/bin

   source /etc/profile

5. 验证Java

   java -version
   java version "17.0.9" 2023-10-17 LTS
   Java(TM) SE Runtime Environment (build 17.0.9+11-LTS-201)
   Java HotSpot(TM) 64-Bit Server VM (build 17.0.9+11-LTS-201, mixed mode, sharing)

安装Nodejs16

注：原本是准备安装nodejs18，但由于服务器版本较低无法匹配nodejs18及以上版本，所以降到nodejs16。

1. 下载

   wget https://nodejs.org/download/release/v16.20.2/node-v16.20.2-linux-x64.tar.gz

2. 解压

   tar -zxf node-v16.20.2-linux-x64.tar.gz

3. 将nodejs的目录迁移至/usr/loacl/下

   mv node-v16.20.2-linux-x64 nodejs
   mv nodejs /usr/local/

4. 添加环境变量

   vim /etc/profile

   export NODE_HOME=/usr/local/nodejs
   export PATH=$NODE_HOME/bin:$PATH

   source /etc/profile

5. 验证Nodejs

   node -v
   v16.20.2

安装Git

1. 更新安装包仓库（旧源只能安装1.8.3版本）

   yum install http://opensource.wandisco.com/centos/7/git/x86_64/wandisco-git-release-7-2.noarch.rpm

2. 安装git

   yum install git

3. 查验git版本

   git --version
   git version 2.39.1

安装Jenkins

1. 安装jenkins

   sudo wget --no-check-certificate -O /etc/yum.repos.d/jenkins.repo https://pkg.jenkins.io/redhat-stable/jenkins.repo
   sudo rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io-2023.key
   yum install fontconfig java-11-openjdk
   yum install jenkins

2. 修改jenkins的端口号

   vim /etc/sysconfig/jenkins

   JENKINS_PORT="8080"

   vim /usr/lib/systemd/system/jenkins.service

   Environment="JENKINS_PORT=8080"

3. 配置jenkins的JDK环境变量

   vim /etc/init.d/jenkins
   加入本机的jdk路径
   candidates="
   /etc/alternatives/java
   /usr/local/jdk17/bin/java
   /usr/lib/jvm/java-1.8.0/bin/java
   /usr/lib/jvm/jre-1.8.0/bin/java
   /usr/lib/jvm/java-11.0/bin/java
   /usr/lib/jvm/jre-11.0/bin/java
   /usr/lib/jvm/java-11-openjdk-amd64
   /usr/bin/java
   "

   systemctl daemon-reload

4. 启动jenkins服务

   sudo service jenkins start
   sudo service jenkins stop
   sudo service jenkins restart

5. 获取密码

   cat /var/lib/jenkins/secrets/initialAdminPassword

6. 在浏览器中访问ip:端口号，显示解锁Jenkins页面，填入上面获取到的密码，继续

7. 选择默认的’安装推荐的插件’

8. 创建初始账号

9. 保存完成配置

10. 设置jenkins开机自启动

    sudo systemctl enable jenkins

安装GitLab

1. 安装必须的依赖项

   sudo yum install -y curl policycoreutils-python openssh-server perl
   sudo systemctl enable sshd
   sudo systemctl start sshd
   sudo firewall-cmd --permanent --add-service=http
   sudo firewall-cmd --permanent --add-service=https
   sudo systemctl reload firewalld

2. 安装Postfix

   sudo yum install postfix
   sudo systemctl enable postfix
   sudo systemctl start postfix

3. 安装gitlab

   curl -fsSL https://packages.gitlab.cn/repository/raw/scripts/setup.sh | /bin/bash
   sudo yum install -y gitlab-jh

4. 修改配置文件

   vim /etc/gitlab/gitlab.rb

   external_url 'http://AILynn'
   nginx['listen_port'] = AILynn

   # 配置发件人信息
   # ### Email Settings
   gitlab_rails['gitlab_email_enabled'] = true
   gitlab_rails['gitlab_email_from'] = 'AILynn'
   gitlab_rails['gitlab_email_display_name'] = 'AILynn'
   gitlab_rails['gitlab_email_reply_to'] = 'AILynn'
   # 配置邮件服务器信息
   gitlab_rails['smtp_enable'] = true
   gitlab_rails['smtp_address'] = "AILynn"
   gitlab_rails['smtp_port'] = 465
   gitlab_rails['smtp_user_name'] = "AILynn"
   gitlab_rails['smtp_password'] = "AILynn`"
   gitlab_rails['smtp_domain'] = "AILynn"
   gitlab_rails['smtp_authentication'] = "AILynn"
   gitlab_rails['smtp_enable_starttls_auto'] = false
   gitlab_rails['smtp_tls'] = true
   # 关闭邮件的SSL验证
   gitlab_rails['smtp_openssl_verify_mode'] = 'none'

   user['git_user_email']="AILynn"

   验证邮件发送

   gitlab-rails console

   Notify.test_email('接收邮件的邮箱地址','邮件标题','邮件内容').deliver_now

5. 重新配置使修改生效并重启服务

   gitlab-ctl reconfigure
   gitlab-ctl restart

   ok: run: alertmanager: (pid 3694) 0s
   ok: run: gitaly: (pid 3702) 1s
   ok: run: gitlab-exporter: (pid 3718) 1s
   ok: run: gitlab-kas: (pid 3729) 0s
   ok: run: gitlab-workhorse: (pid 3737) 0s
   ok: run: logrotate: (pid 3747) 1s
   ok: run: nginx: (pid 3754) 0s
   ok: run: node-exporter: (pid 3760) 0s
   ok: run: postgres-exporter: (pid 3765) 0s
   ok: run: postgresql: (pid 3773) 0s
   ok: run: prometheus: (pid 3782) 0s
   ok: run: puma: (pid 3794) 0s
   ok: run: redis: (pid 3799) 0s
   ok: run: redis-exporter: (pid 3806) 0s
   ok: run: sidekiq: (pid 3814) 0s

6. 获取登录密码

   上面进行重新配置的时候，启动信息中有如下内容：

   Notes:
   Default admin account has been configured with following details:
   Username: root
   Password: You didn't opt-in to print initial root password to STDOUT.
   Password stored to /etc/gitlab/initial_root_password. This file will be cleaned up in first reconfigure run after 24 hours.

   密码存放在/etc/gitlab/initial_root_password中，并24小时内有效

   cat /etc/gitlab/initial_root_password

7. 修改密码，设置中文界面等

安装GitLab Runner

1. 添加 GitLab官方repository

   curl -L "https://packages.gitlab.com/install/repositories/runner/gitlab-runner/script.rpm.sh" | sudo bash

2. 安装gitlab runner

   sudo yum install gitlab-runner

3. 查验gitlab runner版本

   gitlab-runner -v
   Version:      16.5.0
   Git revision: 853330f9
   Git branch:   16-5-stable
   GO version:   go1.20.10
   Built:        2023-10-20T15:57:21+0000
   OS/Arch:      linux/amd64

4. 注册Runner

   在管理中心-CI/CD中点击Runner，进入Runner维护界面。在右侧的<新建实例runner>按钮，点击按钮右侧的三个点，再点击“显示runner安装和注册说明”，获取到注册runner的命令进行交互式安装

   sudo gitlab-runner register --url http://ip:端口号/ --registration-token ZX8fMkhFAWapxDEN
   Runtime platform                                    arch=amd64 os=linux pid=2818 revision=853330f9 version=16.5.0
   Running in system-mode.

   Enter the GitLab instance URL (for example, https://gitlab.com/):
   [http://ip:端口号/]:
   Enter the registration token:
   [ZX8fMkhFAWapxDEN]:
   Enter a description for the runner:
   [LaobaiYun]:
   Enter tags for the runner (comma-separated):
   hexo,build,test
   Enter optional maintenance note for the runner:

   WARNING: Support for registration tokens and runner parameters in the 'register' command has been deprecated in GitLab Runner 15.6 and will be replaced with support for authentication tokens. For more information, see https://docs.gitlab.com/ee/ci/runners/new_creation_workflow
   Registering runner... succeeded                     runner=ZX8fMkhA
   Enter an executor: instance, docker, ssh, virtualbox, docker-autoscaler, docker+machine, kubernetes, custom, docker-windows, parallels, shell:
   shell
   Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded!

配置GitLab Pages

1. 修改配置文件

   vim /etc/gitlab/gitlab.rb

   pages_external_url "http://www.plscript.cn/"
   gitlab_pages['enable'] = true
   gitlab_pages['internal_gitlab_server'] = 'http://47.92.86.162'
   gitlab_pages['gitlab_server'] = "http://47.92.86.162"
   ##! Configure to expose GitLab Pages on external IP address, serving the HTTP
   # gitlab_pages['external_http'] = ['ip:80'] # 配置了https后再开启
   ##! Configure to expose GitLab Pages on external IP address, serving the HTTPS
   # gitlab_pages['external_https'] = ['ip:443']  # 配置了https后再开启
   # gitlab_pages['redirect_http'] = true # 配置了https后再开启

2. 在设置-偏好设置-Pages中，将最大pages大小(MiB)，由100改为0（无限制）。（后续部署的重要项目-Hexo网站会大于100M）

配置SSH访问密钥

1. 生成SSH密钥

   ssh-keygen -t rsa -C "laobai_gitlab"

2. 在gitlab个人设置中找到SSH密钥，添加新密钥

3. 本机有多个SSH密钥配置时，需要配置config文件。需要区分不同的id_rsaXXX文件的指向

   Host gitee.com
      User Tester
      IdentityFile ~/.ssh/id_rsa_gitee

4. 测试添加是否正确 ssh -T git@ip或域名

   ssh -T git@ip

   Welcome to GitLab, @Tester!

Hexo安装同步代码

1. 本地代码准备：拷贝一份已有的网站代码，删除掉.git隐藏目录

2. GitLab项目准备：创建新的空白的公开项目

3. 依次执行下面的命令，将本地代码推送到gitlab步骤1中新建的项目

   cd www.plscript.cn
   git init --initial-branch=master
   git remote add origin git@ip:plproject/代码仓库名.git
   git add .
   git commit -m "Initial commit"
   git push --set-upstream origin master

4. 推送到Gitlab仓库中后，会自动触发gitlab runner进行构建。（但由于gitlab默认给出的.gitlab-ci.yml有问题，构建失败。）

5. 修改.gitlab-ci.yml并提交，提交后会再次触发runner进行构建。

   image: node:v16.20.2 # use nodejs v10 LTS
   cache:
     paths:
       - node_modules/

   before_script:
     - npm install hexo@6.3.0
     - npm install
   pages:
     script:
       - npx hexo generate
     artifacts:
       paths:
         - public
     only:
       - master

   （注，在安装Nodejs16时已经说过，由于服务器版本较低，无法匹配更高版本的Nodejs。这里同样，无法安装Hexo的最新版本7.0，指定安装版本与本地版本一致的6.3.0）

6. 构建完成后，需要再次修改.gitlab-ci.yml，注释掉安装hexo的步骤（再次构建时无需再次安装hexo）。

   image: node:v16.20.2 # use nodejs v10 LTS
   cache:
     paths:
       - node_modules/

   before_script:
     # - npm install hexo@6.3.0
     # - npm install
   pages:
     script:
       - npx hexo generate
     artifacts:
       paths:
         - public
     only:
       - master

Pages配置

1. 在完成上面的构建后，在项目的部署菜单中的Pages中新增域名，即访问hexo网站的域名。（配置域名时需要去阿里云做解析验证）
2. 强制HTTPS和使用唯一域名，根据实际情况自行配置。

问题排查

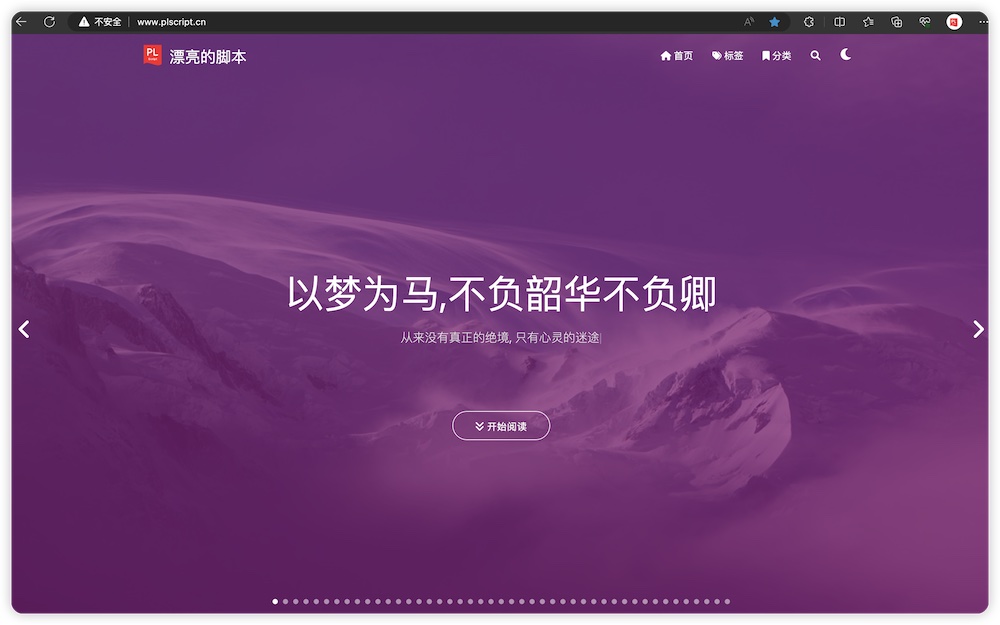

经过上面的步骤，部署的工作已经完成。访问：www.plscript.cn 即可正确展示Hexo的网站。但出现故障，显示502。

通过查看gitlab_pages的日志进行排查

/var/log/gitlab/nginx/gitlab_pages_error.log
/var/log/gitlab/gitlab-pages/current

排查时可以参考gitlab官方中文帮助文档 https://docs.gitlab.cn/jh/administration/pages/index.html

一共有2个问题，均为nginx的配置问题：

1. gitlab-pages.conf 中关于主机使用了proxy，而自己安装配置时并无使用proxy。需要进行重新配置

   vim /var/opt/gitlab/nginx/conf/gitlab-pages.conf


   server {
     listen *:80;
     server_name  www.plscript.cn;
     # server_tokens off; ## Don't show the nginx version number, a security best practice

     ## Disable symlink traversal
     disable_symlinks on;


     ## Real IP Module Config
     ## http://nginx.org/en/docs/http/ngx_http_realip_module.html

     ## HSTS Config
     ## https://www.nginx.com/blog/http-strict-transport-security-hsts-and-nginx/
     add_header Strict-Transport-Security "max-age=63072000";

     ## Individual nginx logs for this GitLab vhost
     access_log  /var/log/gitlab/nginx/gitlab_pages_access.log gitlab_access;
     error_log   /var/log/gitlab/nginx/gitlab_pages_error.log error;

     # Pass everything to pages daemon
     location / {
       root /home/gitlab-runner/builds/yPFKup9c/0/plproject/www.plscript.cn/public;
       index index.html;
       # proxy_set_header Host $http_host;
       # proxy_set_header X-Real-IP $remote_addr;
       # proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
       # proxy_set_header X-Forwarded-Proto http;

       # Prevent NGINX from caching pages in response to the pages `Cache-Control`
       # header.
       #
       # Browsers already respect this directive and Pages can handle the request
       # volume without help from NGINX.
       #
       # If this changes in the future, ensure `proxy_cache_key` is set to a value
       # like `$scheme$host$request_uri`, as the default value does not take the
       # Pages hostname into account, leading to incorrect responses being served.
       #
       # See https://gitlab.com/gitlab-org/gitlab-pages/issues/73
       # proxy_cache off;


       # proxy_http_version 1.1;
       # proxy_pass          http://localhost:8090;
     }

     # Define custom error pages
     error_page 403 /403.html;
     error_page 404 /404.html;

   }

   需要注意的是，网上很多的文章给出的配置中，root路径设置的是：

   root /var/opt/gitlab/gitlab-rails/shared/pages;

   而实际上Hexo的路径为：

   root /home/gitlab-runner/builds/yPFKup9c/0/plproject/www.plscript.cn/public;

   完成上面的配置后，重启服务，再次访问 www.plscript.cn 。这回提示403错误。

   需要注意的是修改了/var/opt/gitlab/nginx/conf/gitlab-pages.conf后不能进行重新配置gitlab-ctl reconfigure，否则配置的信息会被重置。这个在gitlab-pages.conf文件中头部注释信息已经说明了

   # This file is managed by gitlab-ctl. Manual changes will be
   # erased! To change the contents below, edit /etc/gitlab/gitlab.rb
   # and run `sudo gitlab-ctl reconfigure`.

2. 排查发现，403是由于nginx的启动用户和工作用户不一致导致的：

   a. nginx的启动用户是gitlab-www ps aux|grep nginx

   b. nginx的工作目录用户是gitlab-runner

   修改nginx的启动用户和用户组

   /var/opt/gitlab/nginx/conf/nginx.conf

   修改第一行，修改所属用户和用户组为root

   #user gitlab-www gitlab-www;
   user root root;

   修改nginx的工作目录即Hexo网站存放目录的用户和用户组为root，网站可以访问了，但CI/CD流水线也会出现执行账号无权限的403错误

   # 此方法不适用，会引发新的问题
   cd /home/gitlab-runner/

   chown root builds -R
   chgrp root builds -R

   这里使用另外的方式解决，提升gitlab-runner的账号权限，设置如下：

   vim /etc/sudoers  # 在root账号的下方增加gitlab-runner的设置，让gitlab-runner拥有root账号同等的权限

   root    ALL=(ALL)       ALL
   gitlab-runner ALL=(ALL)    NOPASSWD:ALL

   修改完成后，重启服务，再次访问 www.plscript.cn ，已可以正确访问了。
